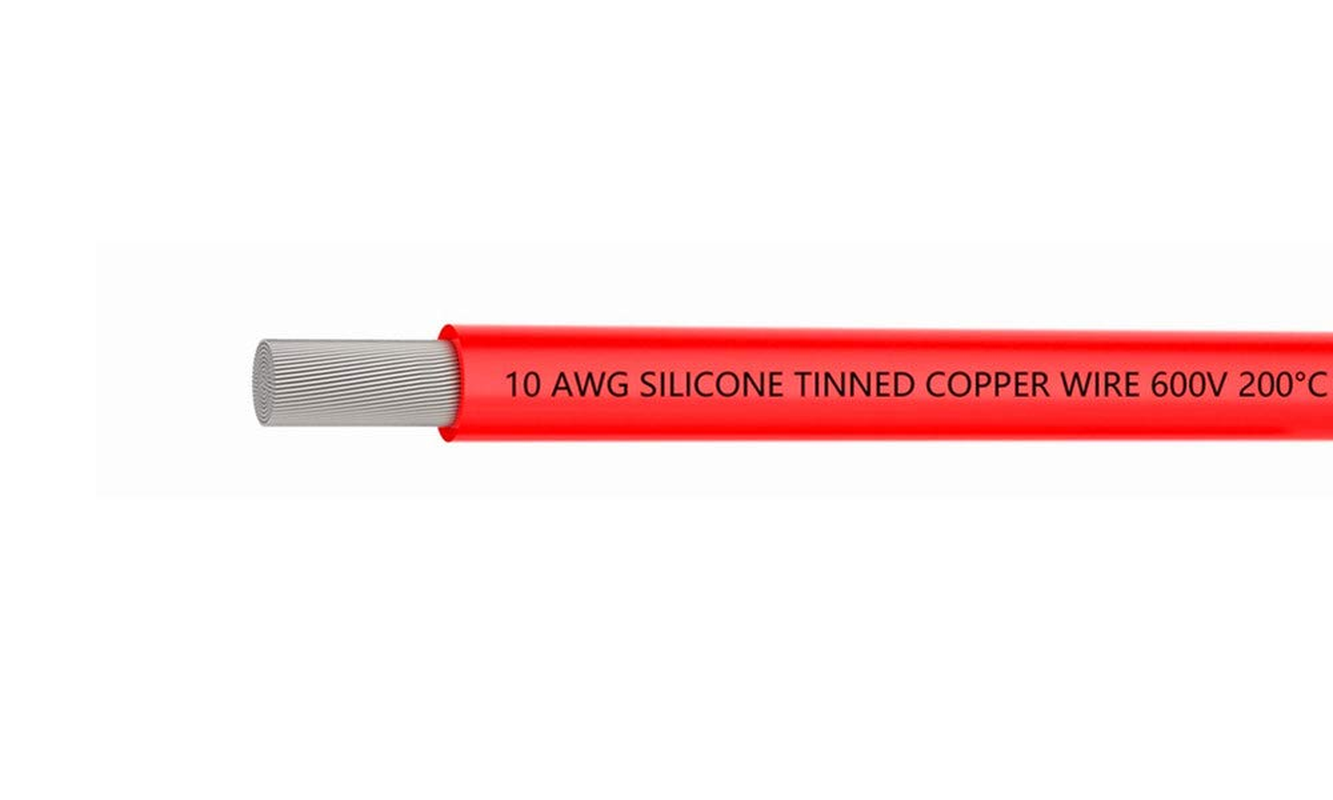

Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire

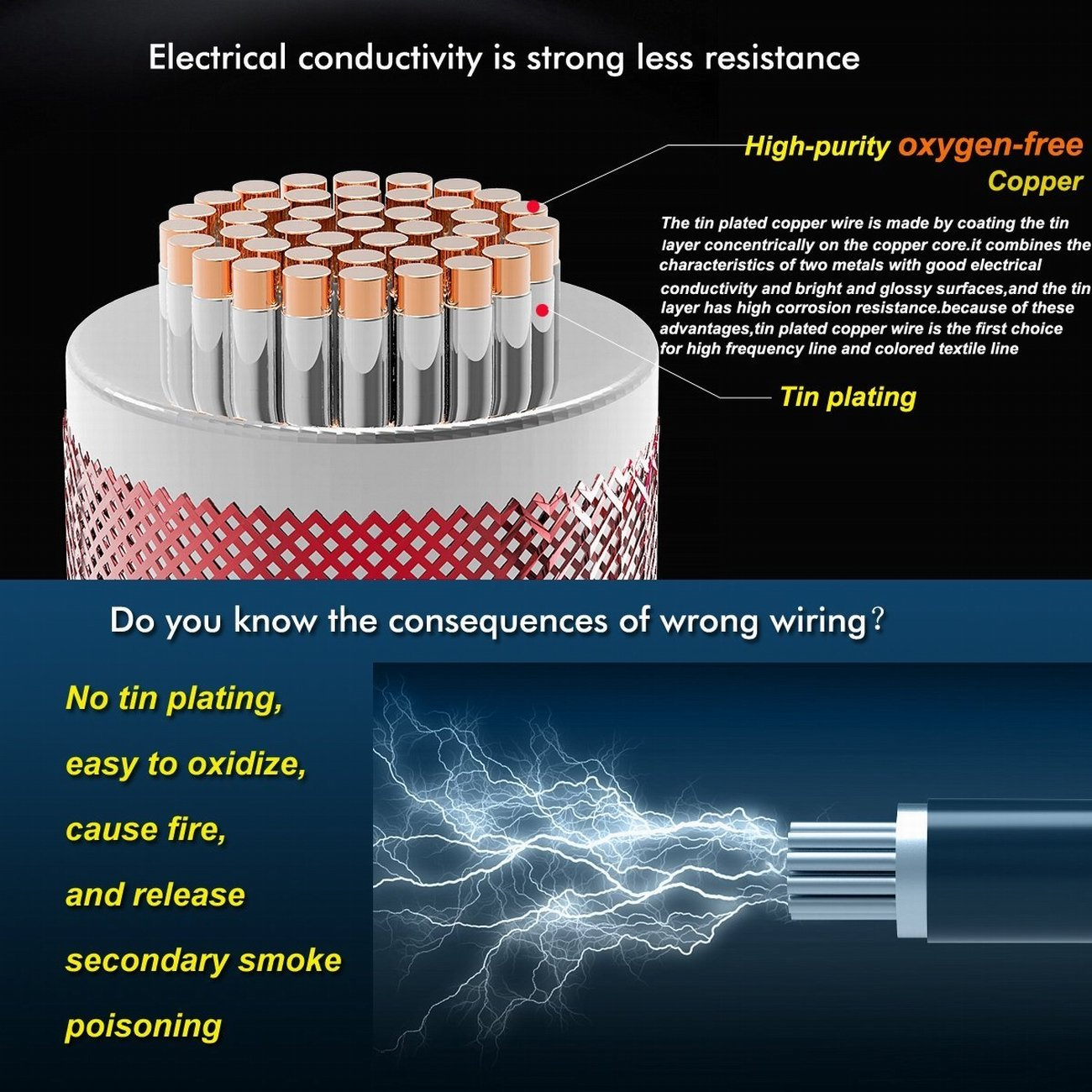

– High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .
– Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation.
Specification:
– Color: Black+Red
– Material: Conductor – tinned copper
– Insulator: Silicone
– Wire number: 10 AWG
– Total length: 90 feet Red wire
– Number of shares :1050
– diameter: 0.003in
– Wire diameter: 0.12in
– Sheath outer diameter: 0.22in
– Insulation Thickness: 0.035in
– Conductor resistance: 9.8 ohm one thousand meters
– Rated voltage: 600V
– Testing Voltage:2000V
– Bear Current:43A
– Temperature range: -60 ~ + 200
– Outer diameter tolerance: 0.005in
Parcel:

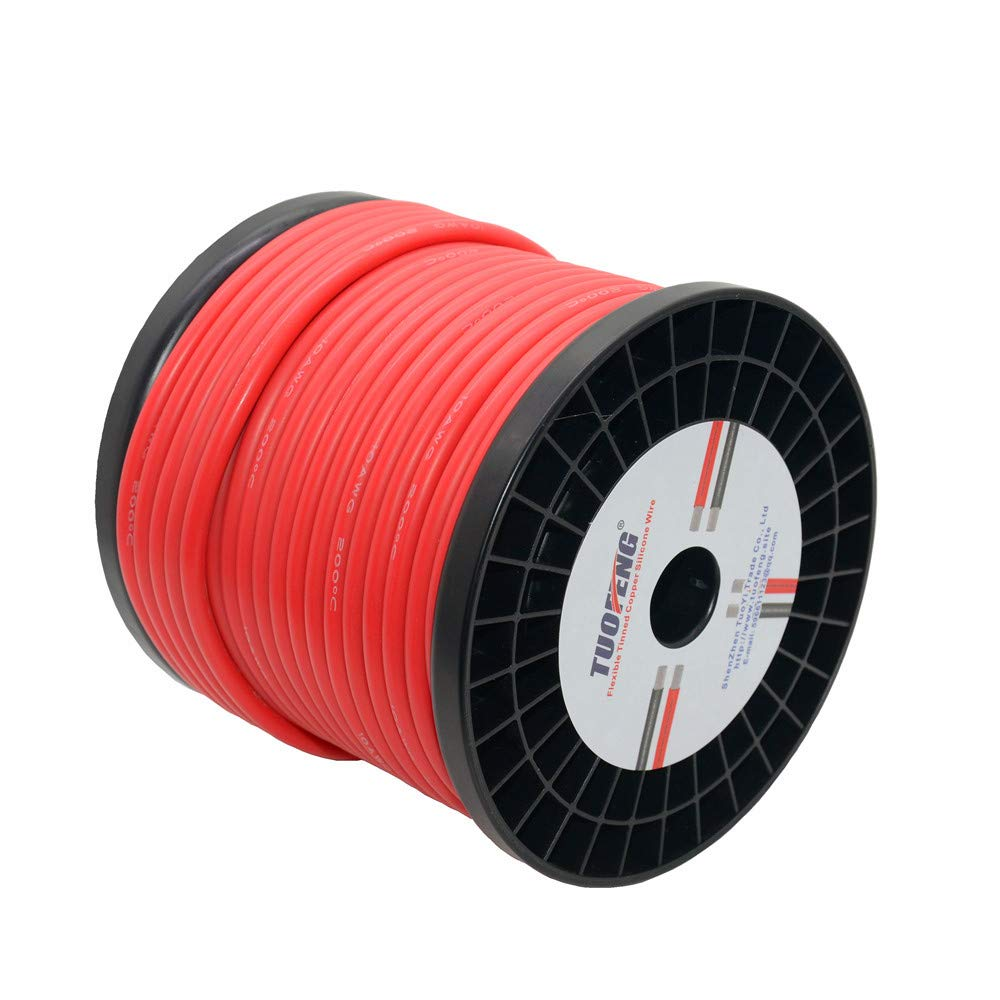

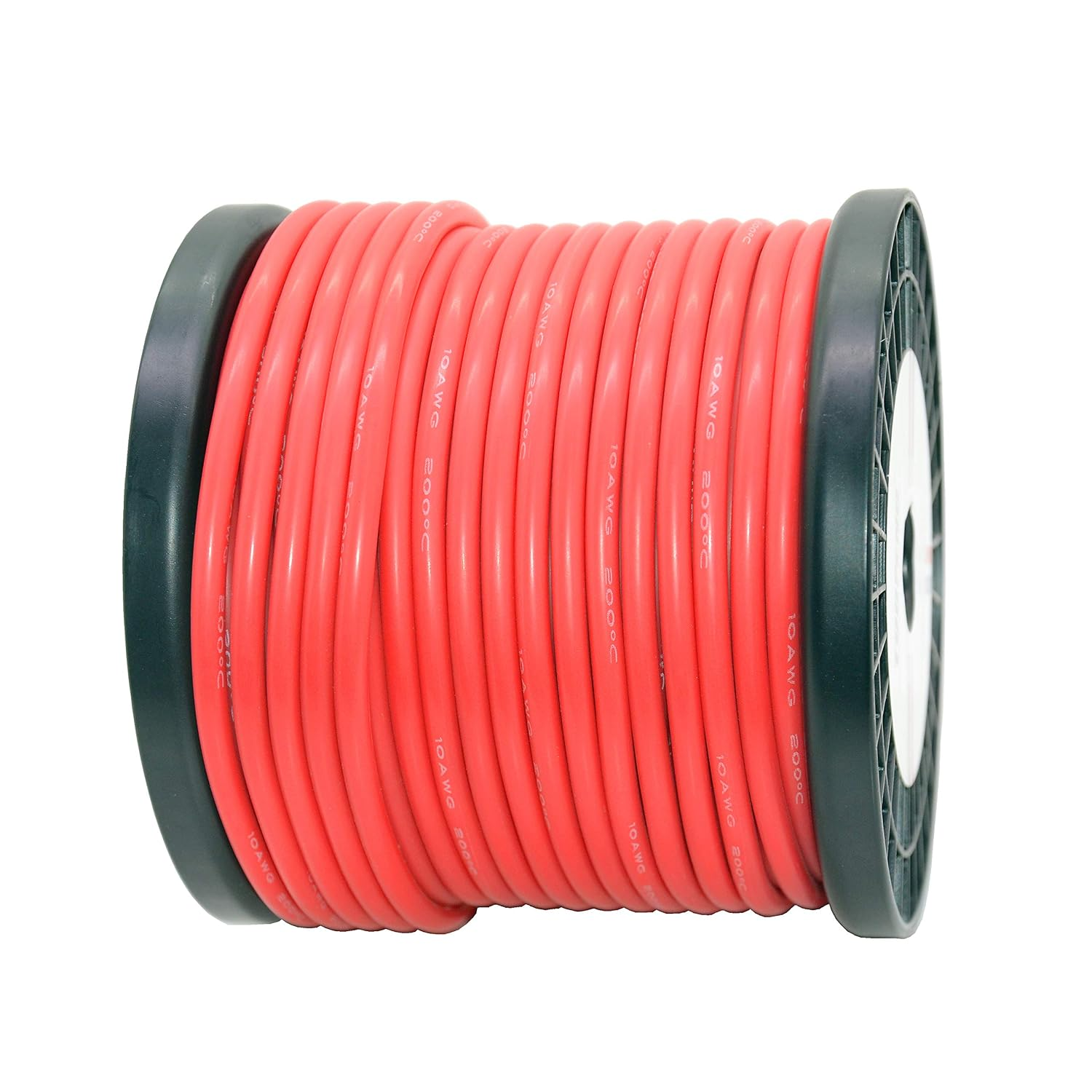

10 Gauge Silicone Wire 90 ft Red wre

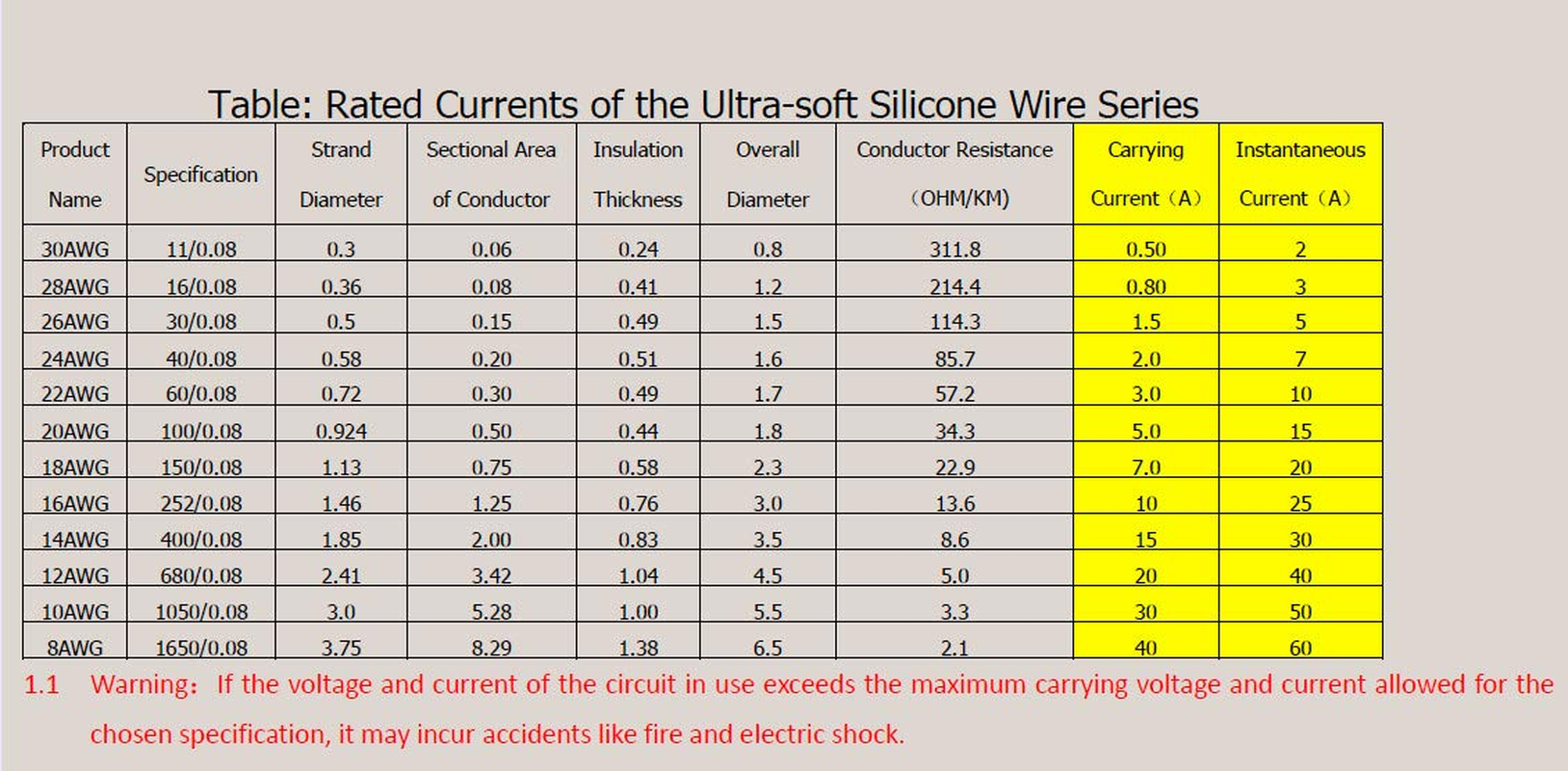

Warning：If the voltage and current of the circuit in use exceeds the maximum carrying voltage and current allowed for the chosen specification, it may incur accidents like fire and electric shock
- TUOFENG 10 AWG Silicone Wire Widely Used for RC Toys Models Auto Battery Clamp Cable Electronic Equipments, for making high-current/low-resistance patch cables.ATV,RC charging box,tester,portable power station. solar power system, snowblower,RC Helicopter, air compressor，batteries,lamps,household appliances,electric heating appliances,meters,motor lead wire and digital fields
- in Coated Copper Wire – Tin Coated Wire can Outlast the Competition 10 Fold due to Its Corrosion and Oxidation Resistant properties. This Means the Internal Resistance of the Wire Stays Low for Longer, thereby Channeling More Power to Your RC Models, Devices, or Other Applications
- 10 Gauge silicone wire – super flexible 1050 strands of 0.08 mm Tinned copper wire – Highly efficient – Super low impedance for a highly efficient connection.
- High Temperature Resistant Silicone Wire.Temp: -60 degree celsius 200 degree celsius , Nominal Voltage 600V,Bear Current: 43A
- 10 gauge silicone wire 90 feet red wire
